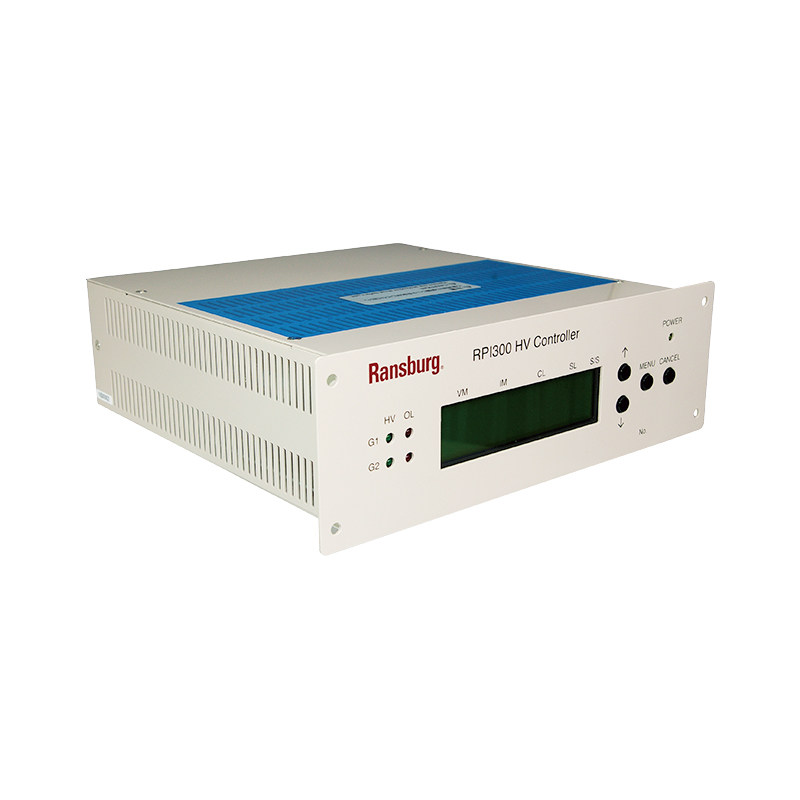

RPI300 HV Controller
Two units (2ch) of boost voltage type coating equipment can be controlled by this one device, high voltage output can be obtained with four stages and range of -5 to 90kV for each of the stages are available.
- Equipped with a high-performance 32-bit CPU, self-diagnostics and automatic frequency adjustment functions are newly added.
- Values of kV, μA, CL, SL sensitivity and high voltage levels for two guns are displayed at the same time on the same screen due to the LCD display on the front panel.
- Menu operations can be switched to many other modes, so maintenance features including the sensitivity settings screen, monitoring screen and error log are enhanced.
- Physical specifications and mounting dimensions ensure compatibility with the existing RPI1200 high voltage controller.
- Power supply ranging from AC100 to 220V is available.
